The sender mounts to the transmission and converts the transmission linkage arm position into an electrical signal. Change from red or green leds lit.

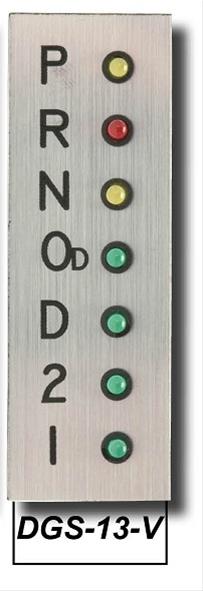

Dakota Digital Led Gear Position Indicators Dgs 13 V
Dakota digital gss 2000 wiring diagram. Press and release the switch to change the output type. The decoder converts the electric. System switches to night mode when terminal has 12v light or buzzer 4 watts or more tail light light or buzzer 4 watts or less relay exsisting fuel level sensor red white black. Dakota digital gss unit 1 wire output right turn signal wire optional left turn signal wire high beam wire parking brake switch speed out 2k or 4k ppm connect to tail light circuit led backlights will turn on when termianl has 12v light or buzzer 4 watts or more tail light light or buzzer 4 watts or less relay existing fuel level sensor. Dakota digitals ecd 100 electronic speedometer cable drive unit duration. The dakota digital universal gear shift sender consists of three main components.
Unboxing dakota digital gss 2000 for my 73 cluster swap duration. The decoder converts the electric signal. Dakota digital gss unit 1 wire output right turn signal wire optional left turn signal wire high beam wire parking brake switch ut connect to tail light circuit. The sensor mounts to the transmission and converts the transmission linkage arm position into an electrical signal. Press and hold the switch on the gss 2000 decoder while turning the key on. King shaka customs 506 views.
And start positions 12v with key in on to ecm park neutral input optional to neutral safety relay optional to back up lights optional to parking lights circuit to 2 red wire to p red wire to d red wire. Wiring gss 1000 to dakota digital individual gear shift indicator dgs 1 or dgs 2 5. Gss 2000 the easiest system to install and use on the market. Gss 2000 the easiest system to install and use on the market. The leds should come on all green or all red. Dakota digital manufactures digital instrumentation and accessories for the automotive motorcycle and car audio enthusiast.
The indicator is built into every system but will not light up unless a dakota digital gss 100020005000 gear shift sending unit is connected or a dakota digital bim 01 1 with a compatible electronic transmission is used telling the system what gear the transmission is in. Red is for 12v outputs for dakota digital and most other displays. The sensor decoder and mounting brackets. Green is for ground outputs for lokar displays. To learn more visit our website. The dakota digital universal gear shift sender consists of 3 main components these are the sensor decoder and mounting brackets.
Instructional video on how to mount dakota digitals universal gear shift sending unit to your transmission.
