Lutron grafik eye qs control unit qse ci dmx selv pelv nec class 2 qs link wiring for system communication dmx output. The maximum wiring length for the qs link is 2000 ft 610 m.

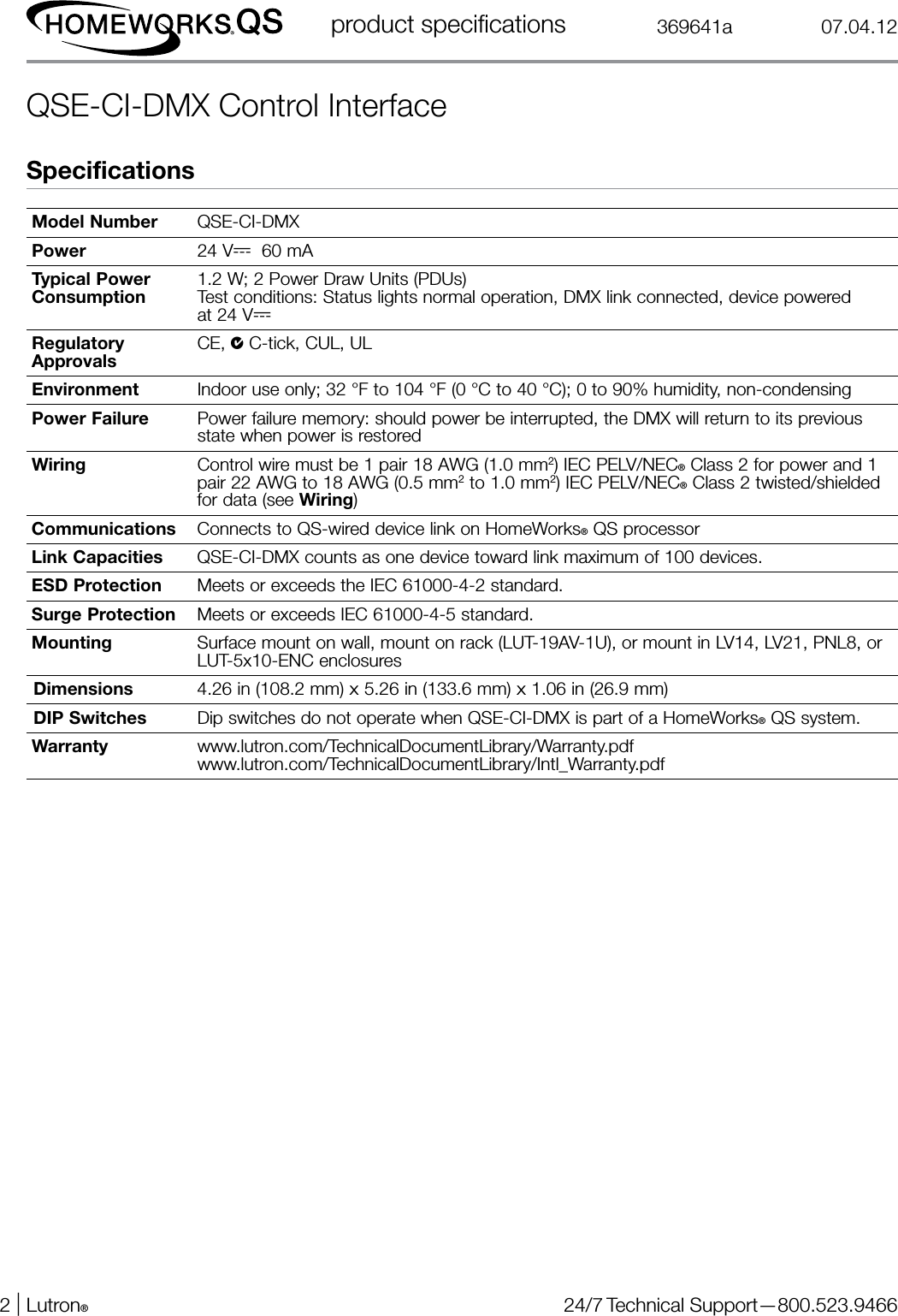

Qse Ci Dmx 32 Channel Dmx Control Interface Lutron
Lutron qse ci dmx wiring diagram. Each feature is designed around what is most important to you how well your building is working. Link must be 1000 feet 305 m or less. Easily monitor control and optimize a lutron control system from any tablet pc or smartphone. 7 wire occ sensor with photocell. B 7 081211 powering the qse ci dmx power for one qse ci dmx counts as two devices toward the maximum of three devices per grafik eye qs control unit when powered off of pin 2 of the grafik eye qs. Qs system qse ci dmx control interfaces 369372 rev.
Another option is to power the qse ci dmx from a qs link power supply qsps p1 1 50. A 7 121510 powering the qse ci dmx power for one qse ci dmx counts as two devices toward the maximum of three devices per grafik eye qs control unit when powered off of pin 2 of the grafik eye qs. 500r 1000r or 2000r models note. 32 dmx channels per qse ci dmx control interface. Wiring diagram is not applicable to. Each terminal on the qse ci dmx accepts two 18 awg 10 mm2 wires.
Lut dmx dmx output yes yes yes qse ci dmx dmx output yes qse io contact closure output yes yes grx io contact closure output yes omx io contact closure output yes yes hw cco 8 contact closure output yes omx ci rs232 rs232ethernet output yes homeworks p5 processor rs232ethernet output yes. Each terminal accepts up to two 18 awg 10 mm2 wires. Dmx 512 link wiring qse ci dmx control interface installation and operation instructions 3 connect the dmx link terminals on the qse ci dmx interface to input terminals on dmx512 controlled equipment. Each qse ci nwk e control interface counts as 1 device and 0 zones. Selv pelv necr class 2 wiring with line voltagemains wiring. The qse ci dmx consumes 2 power draw units on the qs link.
Each qse ci nwk e control interface consumes 2 power draw units pdu on the qs link. Follow all local and national electrical codes when installing 2 connectivity please refer to the wiring diagrams below. The qs wired communications link is limited to 100 devices and 512 switch legs each dmx channel 1 switch leg. Lutrons new facility management tool empowers you to manage your building from anywhere. Qs system qse ci dmx control interfaces 369372 rev. The qse ci dmx converts the zone intensities for that scene into dmx512 channel settings.
Another option is to power the qse ci dmx from a qs link power supply qsps p1 1 50. The rgb led fixture will go to the color programmed for that scene and the stage light will go to the desired intensity.
