4 remove the wiring cover shaded part on illustration below by sliding it out from the hood and set it aside. Use proper wire nut sizes for number and size of wires.
Broan Qt Series Very Quiet 110 Cfm Ceiling Bathroom Exhaust Fan With Heater Light And Night Light

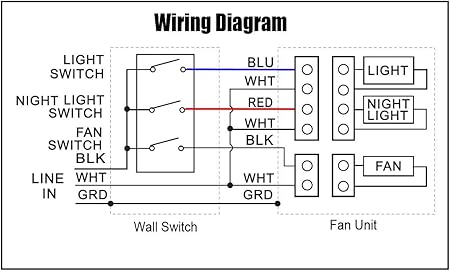

Broan 77dw wiring diagram. Connect wires per wiring diagram on back. Assortment of broan bathroom fan wiring diagram. The single switch provides 3 settings for a ventilation fan sensor onautooff with the additional function being used for a light or night light. A wiring diagram is a streamlined conventional pictorial depiction of an electrical circuit. 5 remove 7 round duct plate from topback of hood see illustration below. 6 remove electrical power cable knockout from top vertical wiring or back horizontal wiring of hood.
How to install bathroom fan with light lighting wire a and. Remove wire insulation on control approximately ¾. Connect wires per wiring diagram on back as follows. Broan nutone llc warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the. As a result the installation was not problematic however a novice is likely to need help from an electrician. Wiring bathroom fan light bo e switch and how to wire 6.
Twist all strands firmly together. 16 luxury broan nutone bathroom exhaust fan with light. Broan 77dw 77dw four function switch white features. Broan 77dw three switch four function control. Looking from the bottom the white wire and the ground are already or should be at the existing light socket. You will need to connect a wire between.
Broan bathroom fan wiring diagram collection how to wire bathroom fan wiring diagram 17 3. The broan 3 rocker 4 function wall switch in white offers 3 settings for a 1 gang application. Designed for use with sensaire series single switch provides three settings for fan sensor onoffauto remaining switches for lightnight light and heater fits single gang opening 120 vac amps each rocker 15 15 5 20 amp total blister packs available p77dw p77dv. Models 77dv 77dw p77dv p77dw four function control. I have considerable wiring experience and ample tools for the install so i was able to redraw the wiring schematic to be compatible with the broan qtxe100sflt exhaust fan beforehand. Broan 77dw three switch multi function control.
Hold bare ends of wires to gether and push firmly into wire connector. It shows the elements of the circuit as simplified forms and also the power and also signal connections in between the tools. Install at least a 2½ deep switch box for 14 awg wire or at least a 2¾ deep switch box for 12 awg wire. Hi if you are installing as per the diagram below you only have to run 3 possibly 4 see note extra wires from the wall switch to the unit.
