Lets understand the star delta starter diagram. The control circuit uses to control the starter circuit such as on off and tripping operations.
Star Delta Circuit Diagram Electrical Engineering Centre

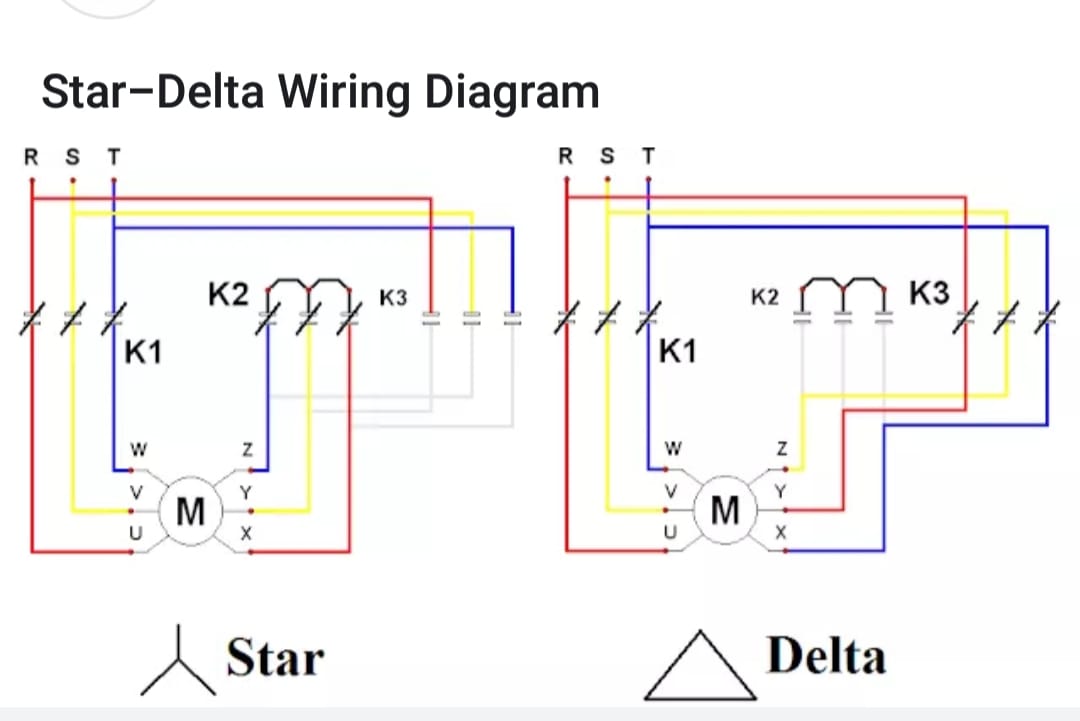

Star delta wiring diagram. The power circuit uses to create contact between the motor and three phase power supply. Here the circuit diagram of star delta starter explained in detail. Power control wiring diagram of star delta starter. Star delta connection circuit diagram. Refer to the below star delta circuit star delta motor connection power circuit power circuit. In this tutorial we will show the star delta y δ 3 phase induction ac motor starting method by automatic star delta starter with timer with schematic power control and wiring diagram as well as how star delta starter works and their applications with advantages and disadvantages.
The most active post in electrical engineering centre blog is star delta starter and star delta motor connectioni received many comments and request for star delta circuit diagram. In control wiring diagram all magnetic contactors coils are rated 220 vac. This type of starting is suitable for small motors below 5 hp 375 kw. The on delay timer diagram is also shown in the diagram. Here you will learn the connection of star delta starter with three phase motor. A 8 pin timer are used.
R y b red yellow blue 3 phase linescb general circuit breakermain mai supplyy starδ deltac1 c2 c3 contatcors power diagramol over load relayno normally opennc normally closed k1 contactor contactor coil k1no contactor holding coil normally openk1 k2 k3 contators for control diagram. Star delta starters consist of a power circuit and control circuit. A dual starter connects the motor terminals directly to the power supplyhence the motor is subjected to the full voltage of the power supplyconsequently high starting current flows through the motor. In the above star delta starter control circuit wiring diagram with timer and normally close push buttonnormally open push button switch. The power circuit diagram and control circuit diagram of an automatic star delta starter are explained below. Star delta connection diagram and working principle.
So this time i want share my simple star delta circuit diagram completed with power and control line circuiti hope it can be as basic reference for all electrician about star delta starter diagram.
