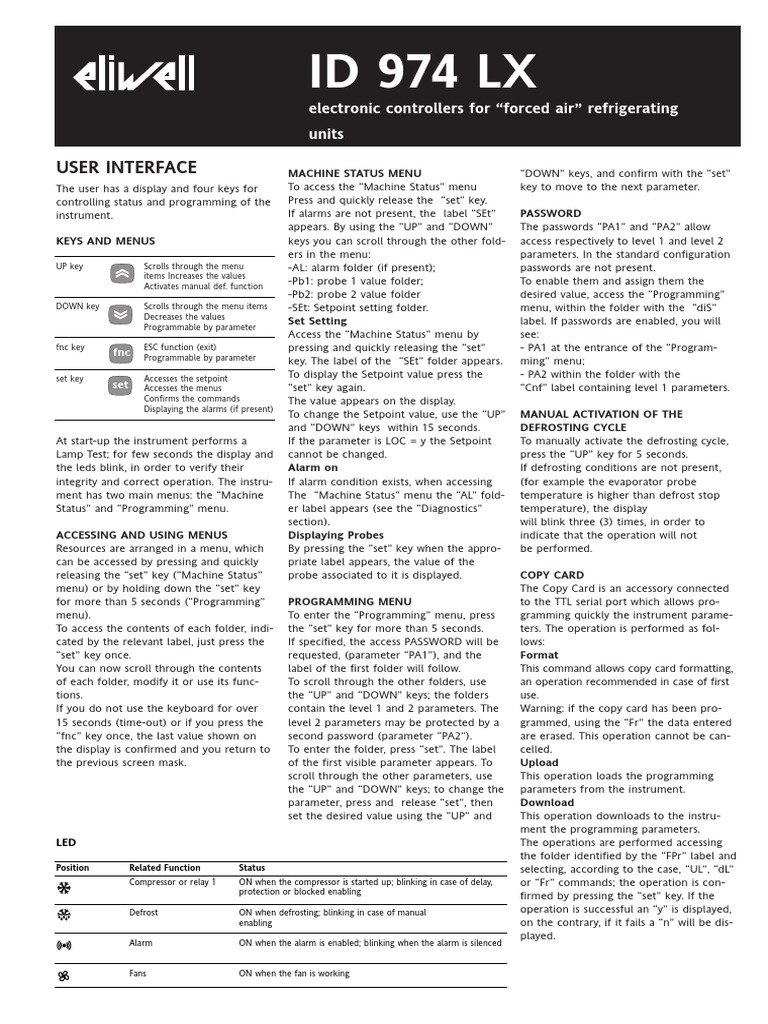

Eliwell id plus 974 wiring diagram. Das menü grundbefehle aufrufen mit taste. Equal to the setpoint plus the value of the differential. 1 parameter table par. This version of eliwell idplus 974 manual compatible with such list of devices as. Summary of contents for eliwell id 974 page 1 id 974 electronic controllers for forced air refrigerating units user interface machine status menu password to access the machine status menu the password allows access to program the user has a display and four keys for press and quickly release the set key. Models 230vasupply n l 230va power supply n l 230va power supply 10 9 probe pb1 10 9 probe pb1 10 11 digital input 1 pb3 probe 10 11 digital input 1 pb3 probe ttl ttl input ttl ttl input.
Idplus 971 and 974 controllers are equipped with the following functions. The value 0 cannot be assumed. In case of higher loads use an appropriate contactor. Idplus 974 idplus 978 static control units the family idplus is particularly suitable for warehouse since due to its versatility allows reducing the number of codes comprising the maximum possibilities. Zum aktivieren der funktion loc. Display und led blinken einige sekunden lang als hinweis für ihren einwandfreien betrieb.
Idplus 974 user interface idplus 974 the relay output 2 nd 3 can be used to control. Make sure the power supply voltage complies with the one required by the instrument. On panel with mounting hole 71x 29mm 02 01 mm. In the model id 974 with switching power supply only one voltage free relay output is present on all other models on the con trary all relay outputs are voltage freedo not exceed the maximum current allowed. Idplus 974 idplus 971 idplus 961 idplus 902. Never work on electrical con.
Benutzeroberfläche id plus 971974 idplus 971974 6 beim einschalten des geräts erfolgt ein lampentest. Eliwell idplus 902 manual. Id 974 lx 34 tab. Controller 974 technical information wwwaxair refrigerationcouk 01782 618 444 idplus 974 devices are controllers with 2 relay outputs 2 temperature sensors regulation and evaporator a multifunctional digitaltemperature input and a digital input. Dif hse lse ont oft don dof dbi odo dty dit dct doh det dst dpo fst fad fdt dt dfd fco afd hal lal pao dao tao loc pa1 ndt ca1 ca2 ddl dro description. Deep cooling cycle advanced algorithm that allows the quick chilling of the temperature easy map function that allows multiple preloaded machine configurations and condenser over heating function that allows monitoring of the compressor discharge temperature and.
Idplus 902961 connections idplus 902. Terminals out1 out1 relay 2 3 4. Up to 4 different parameter settings preconfigured parameter cold heat installation. Eliwell has been delivering control systems and services for commercial and industrial refrigeration and air conditioning units for more than 35 years with ground breaking products packed with state of the art technology.
